Name: AC Motor Low Voltage Vectol Torque Control VFD Variable Speed AC Drive
Brand: AC Motor Low Voltage Vectol Torque Control VFD Variable Speed AC Drive
SKU: KE300A
Price: 1 USD
Availability: InStock
Rating: 4.7 (121 reviews)

풍모 갤러리 제품 설명 따옴표를 요구하십시오

풍모

제품 사양

Network: SDK

Customized support: Software reengineering

Model Number: KE300A

Type: Ac inverter; AC-DC-AC

Output Type: Single, DUAL, Triple

Output Current: 2.3A-680A

Output Frequency: V/f: 0~3000Hz, VC:0~300Hz

Size: Different power with different size

Weight: Different power with different weight

Certificate: CE, CE

Warranty: 18 Months

Color: Black

Control mode: VF SVC VC

OEM: Accepted

Lead Time: Within 7

Application: ac motor

Communication: MODBUS/ RS485

Starting torque: 0.5Hz/150%(SVC)

Rated power: 0.4kW-1600kW

기본 정보

인증: CE, CE

Model Number: KE300A

결제 및 배송 조건

제품 설명

Product Description

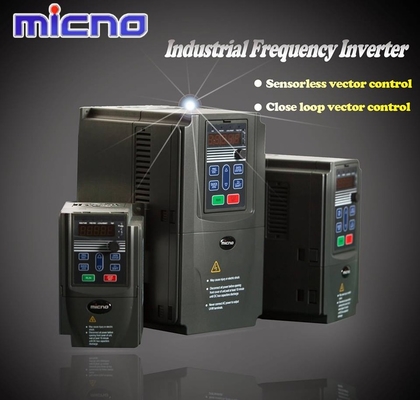

KE300A series sensorless vector contro inverter is perfect for asynchronous driving motors. It is bult on TI's poweful DSP based motor control chip, with the adoption of SVC and TC.

1AC 220V±15%,3AC 220V±15%,3AC 380V±15%,3AC 660V±15%

Input and output

Input	Input voltage	1AC 220V±15%,3AC 220V±15%,3AC 380V±15%,3AC 660V±15%
Input	Input frequency	47~63Hz
Output	Output voltage	0~Rated voltage
Output	Output frequency	V/f:0~3000Hz, SVC:0~300Hz

Control Feature

Control mode	V/f , SVC, VC, Torque control
Operation command mode	Keypad control, Terminal control, Serial communication control
Frequency setting mode	Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combinated & switched in various modes.
Overload capacity	G model: 150% 60s, 180% 10s, 200% 3s P model: 120% 60s, 150% 10s, 180% 3s
Starting torque	0.5Hz/150% (SVC),1Hz/150% (V/f)
Speed adjustment range	1:100 (SVC), 1:50(V/f)
Speed control precision	±0.5% (SVC)
Carrier frequency	1.0--16.0kHz, automatically adjusted according to temperature and load characteristics
Frequency accuracy	Digital setting: 0.01Hz Analog setting: maximum frequency ×0.05%
Torque boost	Automatically torque boost; manually torque boost 0.1%~30.0%
V/f curve	Three types: straight line, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
ACC/DEC mode	Linear/S curve; four kinds of ACC/DEC time, range 0.1s~3600.0s
DC braking	DC braking when starting and stopping DC braking frequency: 0.0Hz~maximum frequency, braking time: 0.0s~36.0s; Braking current: 0.0%~100.0%
Jog operation	Jog operation frequency: 0.0Hz~maximum frequency Jog ACC/DEC time: 0.1s~3600.0s
Simple PLC & multi-step speed operation	Max. 16 steps speed running via built-in PLC or control terminal.
Built-in dual PID	Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
Automatic voltage regulation	Keep output voltage constant automatically when input voltage fluctuating

I/O terminals

Input terminals	Programmable DI: 7 on-off inputs, 1 high-speed pulse input 2 programmable AI: AI1: voltage -10~10V A12: voltage 0~10V or current 0/4~20mA
Output terminals	1 programmable open collector output: 1 analog output (open collector output or high-speed pulse output) 2 relay outputs 2 analog output: 0/4~20mA or 0~10V
Communication terminal*2	Offer RS485 communication interface, support MODBUS-RTU communication protocol

Packaging & Shipping

Trade Terms: EXW, FOB, CFR/C&F, CIF

Payments: TT, Western Union, LC

Lead time: 1-7 days for samples, 1-25 days for batch orders.

Package: standard export carton box & plywood case

Shipment: express for samples, by air or by sea for batch orders.
