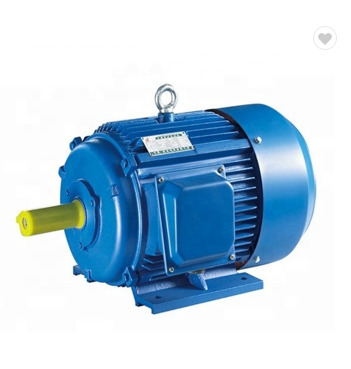

Totally Enclosed 100% Copper Wire AND 100% Cast Iron 5.5HP 6 POLE Y132M1-6 OUTPUT Three Phase Electric Motor

5 Pieces
MOQ
$37.00(>=5 Pieces)
가격
Totally Enclosed 100% Copper Wire AND 100% Cast Iron 5.5HP 6 POLE Y132M1-6 OUTPUT Three Phase Electric Motor
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: 1 year, 1 year
Model Number: Y132M1-6
Type: Asynchronous Motor
Frequency: 50Hz,60Hz
Phase: Three-phase
Protect Feature: Totally Enclosed
AC Voltage: 220-760V
Efficiency: IE 1
Product Name: 100% Copper Wire Y Series Three Phase Electric Motor
Protection class: IP44,IP54,IP55
Rated frequency: 50Hz,60Hz
Cooling method: IC0141
Duty: S1 (continuous)
Delivery: 25 days
SPEED: 920RPM
인증: CCC, ce
기본 정보
인증: CCC, ce
Model Number: Y132M1-6
결제 및 배송 조건
Packaging Details: 1pcs into one carton or sea worthy plywood case
Supply Ability: 1500 Piece/Pieces per Month
제품 설명
Specification

Operating conditions

Ambient temperature:-15ºC<θ<40ºC
Altitude: not exceed 1000m
Rated voltage:380V or any voltage between 220V-760V
Rated frequency: 50Hz,60Hz
Protection class:IP44,IP54,IP55
Insulation class: B,F
Cooling method: IC0141
Duty:S1(continuous)
Connection: Star-connection for up to 3kW,
Delta-connection for 4kW and above.
Product Description

100% Copper Wire Y Series Three Phase Electric Motor

Y series motor is totally enclosed self fan cooled squirrel cage three-phase asynchronous motor, which is the basic series of the latest design. In accordance with the relevant provisions of the IEC standard. With high efficiency, energy saving, high starting torque, low noise, small vibration,high reliability, easy to use and convenient maintenance and so on. The general situation is widely used in inflammable, explosive or corrosive gas, and no special requirements to the mechanical equipment, such as metal cutting machines, pumps, fans, mixer, agricultural machinery, transport machinery and food machinery etc..
Company Profile
FUAN JINGHE ELECTRIC CO.,LTD. is specialized in exporting a wide range of electromechanical products equipments, such as Marine Engines, Marine Geraboxes, Marine & Land Diesel Generator Sets, Alternators / Generators, Electric Motors, Water Pumps and their parts etc.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1： How soon will the order be completed and shipped ?
Within 25-30 days after receiving advance payment or L/C .

Q2: What is the nwarranty of goods ?
1 year from shipment date or 1500 running hours whichever comes first.

Q3: What is the payment term ?
T/T,L/C, Paypal , Western Union and so on.
