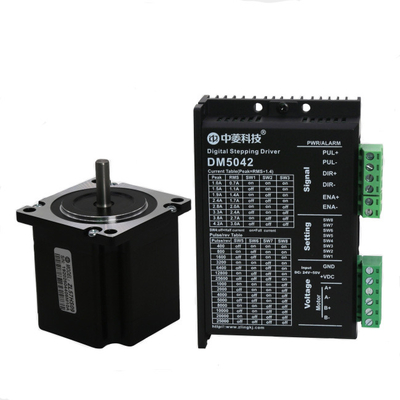

ZLTECH 1.8 Degree 2 Phase 57mm NEMA 23 4A 1.2N.m 4 Step Lead 8mm Shaft Diameter 6.35mm Stepping Motor And Driver Kit For CNC 118mm*75.5mm*34mm

2 Pieces
MOQ
ZLTECH 1.8 Degree 2 Phase 57mm NEMA 23 4A 1.2N.m 4 Step Lead 8mm Shaft Diameter 6.35mm Stepping Motor And Driver Kit For CNC 118mm*75.5mm*34mm
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: 3months-1year
Model Number: ZL57HS09+DM5042
Phase: 2
Type: Hybrid
Current / Phase: 3A
Product name: 2 phase stepper motor and driver
Shaft diameter: 6.35mm/8mm
Shaft length: 21mm
Motor length: 55.5mm
Inductance/Phase: 1.4mH
Rotor inertia: 280g.cm2
Rated Current: 4A
Phase Resistance: 0.44Ω
Driver Voltage: DC 24V-50V
Driver Outline Size: 118mm*75.5mm*34mm
인증: ce, ISO, RoHS
기본 정보
인증: ce, ISO, RoHS
Model Number: ZL57HS09+DM5042
결제 및 배송 조건
Packaging Details: motor weight: 0.72kg driver weight: 0.25kg motor total length: 76.5mm
제품 설명
Product Description
Stepper motor is an open-loop control motor that converts electrical pulse signal into angular displacement or linear displacement. It is the main actuator in modern digital program control systems, which is normally used for CNC, dispenser, laser cutting machine, engraving machine, marking machine, medical equipment, and automatic assembly equipment, etc.
Stepper Motor
ZL57HS09
Shaft
Single Shaft
Size
Nema23
step angle
1.8°
shaft diameter
6.35mm/8mm
shaft length
21mm
Holding Torque
1.2N.m
Rated Current
4A
Phase Resistance
100MΩ Min 500VC DC
Phase Resistance
1.35Ω
Rotor Inertia
280g.cm2
Phase Inductance
1.4mH
Lead Wire
4
Motor Length
55.5mm
Item
DM5042
Current(A)
1.0-4.2
Voltage(V)
DC(24-50V)
Suitable Step Motor
Nema17, Nema23, Nema34
Outline Size(mm)
118*75.5*34
Control Signal
differential signal


Feature
* Large output torque, high speed and no step loss.

* Low heat, low noise, low vibration and high precision and long lifespan.


  • Motor wiring

1. When installing the motor, be sure to use the front end cover of the motor to install the stop position, and pay attention to the cooperation, strictly ensure the concentricity of the motor shaft and the load. 2. When the motor is connected to the driver, do not connect the wrong phase.
Detailed Images
Size Information
Related Products
Company Introduction
Shenzhen Zhongling Technology Co., Ltd is a high-tech company integrated R&D, production and sales, has been focusing on industrial automation product since its establishment. Our product including digital stepper motor, integrated open/closed loop stepper motor, standard split closed loop stepper motor, Ethernet TCP/IP stepper driver, low voltage DC servo motor, AGV robot dedicated hub servo motor, high precision DD motor indexing plate, SCARA robot arm, and so on, have been applied by thousands of customers, and provide one-stop service for AGV industry. And our product has been exported to Southeast Asia, Europe, United States and other countries.
Packing&Shipping
Motor weight: 0.72kg
Motor total length: 76.5 mm
Package: carton with foam, quantity per carton will depend on the motor size.
Shipping: goods will be deliveried by air(EMS, DHL, FedEx,TNT etc), by boat according to your requirements.
FAQ
1. Factory or trader?
-->ZLTECH is a manufacture of hub servo motor, stepper motor, servo motor and driver. We have professional R&D team and factory.
2. How about the delivery?
--> Sample: 7 days.
--> Mass order: 15-30 days.
3. What is your after-sales services?
a. Free maintenance within 12 months guarantee, lifetime consultant.
b. Professional solutions in installation and maintence.
4. Why choose ZLTECH?
-->a. OEM & ODM.
b. Factory Price & 24/7 services.
c. From mold customization to material processing and welding, from fine components to finished assembly, 72 processes, 24 control points, strict aging, finished product inspection.
d. One-stop service, from design to after-sale service.
5. Do you get the relevant certification?
-->All products are made according to ISO9001, CE requirements.
