풍모

제품 사양

Warranty: 3months-1year

Model Number: p60

Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance, uav

Type: Micro Motor

Torque: 0.98N * m-11.6N * m

Construction: Permanent Magnet

Commutation: Brushless

Protect Feature: Waterproof

Speed(RPM): KV100 KV120

Product Name: brushless dc motors

Application: Automatic Product

Feature: High Efficiency

Function: Driven Equipment

Noise: Low Noise Level

인증: CCC

기본 정보

인증: CCC

Model Number: p60

결제 및 배송 조건

Supply Ability: 10000 Piece/Pieces per Month

제품 설명

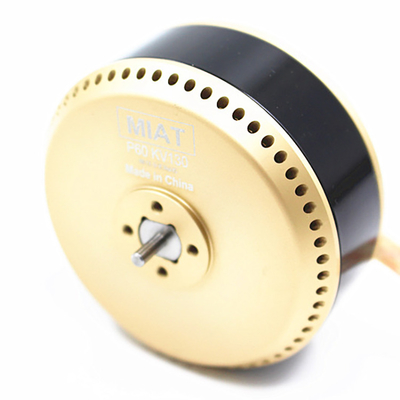

Brushless dc motor

Product Paramenters

P60 24N28P
Moto Type	P60 KV170	P60 KV340
Iron Core Size(mm)	XXX		XXXX
Motor Size(mm)	ø68.8*34.8		ø56*35.5mm
Weight（g）	328		277
Idle Current(20V）	0.9A	2.2A
Support Lithium Battery(V)	6-12S(48V)	6S
Max Continuous Current(A)	35	59
Max Continuous Power(W)	1660	1450
Internal Resistance(Ω)	0.0965	0.0385
Propeller is recommended	22-24 inch		18inch

Note : It's just the typical technical data for you reference, The specification such as voltage, speed, torque, shaft can customized.

Related Products

Company Introduction

MIAT is an electric power system r&d and manufacturing company. Since its establishment in 2008, MIAT has been committed to the development and continuous progress in the field of aviation aircraft, providing high-performance brushless motor, propeller and motor controller for aircraft manufacturers and aviation enthusiasts worldwide.

After more than ten years of hard work, MIAT owns the world's leading power products of aviation aircraft, and has grown into a professional brushless motor manufacturer integrating r&d, design, processing and manufacturing. Professional production of more efficient and safer multi-rotor brushless motor, agricultural plant protection brushless motor, aerial photography brushless motor, UAV accessories. For uav enterprises supporting 0.1kg-100kg tension of efficient and stable power system, for many model fans to provide professional and stable cost-effective products, but also uncompromising for all kinds of models to provide the ultimate power. Relying on excellent quality and the support of users in dozens of countries around the world, it has created a unique brand positioning in the field of model airplanes, unmanned aerial vehicles and plant protection power. It is the MIAT, which is both cost-effective and powerful.

Certifications

Packing&Shipping

FAQ

Q1: Can I get some samples? A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost. Q2: Do you receive customized order? A: Yes, ODM & OEM are welcomed. Q3: What's the lead time？ A: According to the order quantity, small order usually need 3-5 days, big order need negotiation. Q4: What's your warranty terms? A: We supply 12 months warranty time. Q5: What's your payment terms? A: We receive Escrow, T/T, West Union, Cash and etc.
