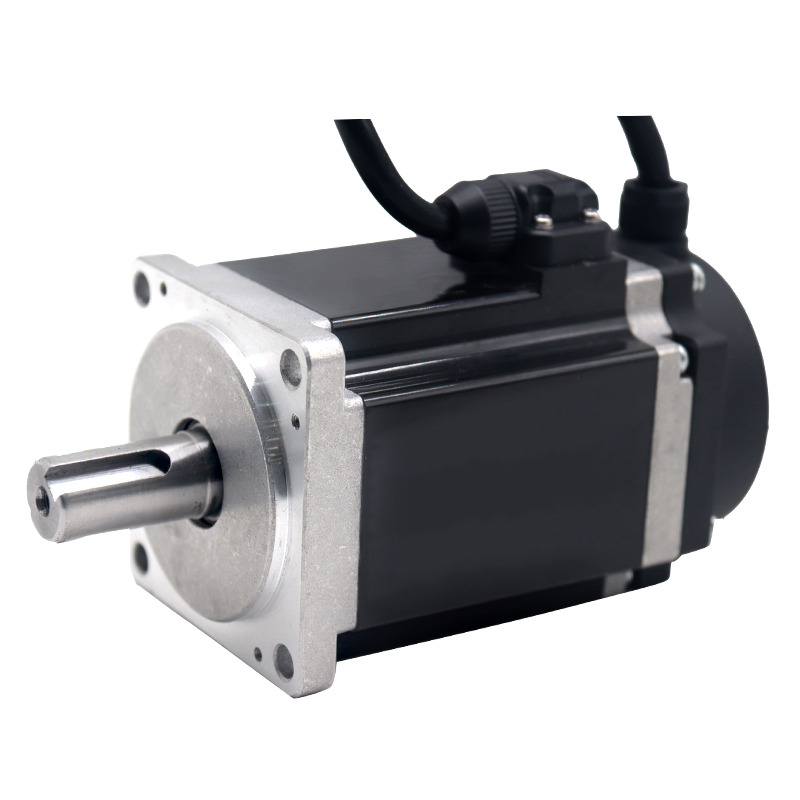

24vdc rotary encoder motorfor servo flap barrier gate dripproof

2 Sets
MOQ
$112.00(2 - 9 Sets) $104.00(10 - 49 Sets) $101.00(50 - 99 Sets) $97.00(>=100 Sets)
가격
24vdc rotary encoder motorfor servo flap barrier gate dripproof
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: 3months-1year
Model Number: EBS60F, 1000 lines
Usage: sliding gate turnstile servo motor
Type: SERVO MOTOR
Torque: 0.64nm
Construction: Permanent Magnet
Protect Feature: Drip-proof
Speed(RPM): 2500rpm
Continuous Current(A): 5.5A
Efficiency: IE 2
Rated voltage: 24v
Rated power: 200w
Continuous rated speed: 2500rpm
Continuous rated torque: 0.64nm
Continuous rated current: 5.5A
Peak current: 11A
Encoder resolution: 4000ppr
Product Name: Servo Motor
Keywords: Long Life Low Cost
Noise: Low Noise Level
기본 정보
Model Number: EBS60F, 1000 lines
결제 및 배송 조건
Packaging Details: standard package
Supply Ability: 500 Piece/Pieces per Month
제품 설명
Product Description
Specification
item
value
Warranty
3months-1year
Place of Origin
China
Guangdong
Brand Name
jiayu
Model Number
EBS60F, 1000 lines
Usage
BOAT, Car, Electric Bicycle, Home Appliance
Certification
ce
Type
SERVO MOTOR
Torque
0.64nm
Construction
Permanent Magnet
Commutation
Brushless
Protect Feature
Drip-proof
Speed(RPM)
2500rpm
Continuous Current(A)
5.5A
Efficiency
IE 2
Rated voltage
24v
Rated power
200w
Continuous rated speed
2500rpm
Continuous rated torque
0.64nm
Continuous rated current
5.5A
Peak current
11A
Encoder resolution
4000ppr
Product Name
Servo Motor
Keywords
Brushless Dc Electric Motor
Noise
Low Noise Level
Company Profile
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
The company's technology stems from mature domestic and foreign technology transfer and independent research and development. The products are localized and the core technology is independently controllable.
The company introduced advanced control technology and manufacturing technology from Germany and Switzerland, and has an experienced R&D and manufacturing team. In the application field of security gate control gate equipment, it has realized infrared and light curtains. The industry's logic and control technology for the gate movement module, the self-developed and manufactured electronic control module for pedestrian passage gates and vehicle barrier gates have covered customers in various industries such as high-speed rail stations, subway stations, airports, ports, highways, etc. group.
Since its establishment, our company has won the recognition and support of our customers by virtue of "excellent quality, honest service". Now the factory covers an area of more than 2,000 square meters and has passed the ISO9001:2015 quality management system certification. In the channel gate equipment industry, tens of thousands of electronic control products developed and manufactured by Jiayu Mechatronic Co., Ltd. have been shipped on supporting customers' complete equipment, which are spread all over the country, as well as overseas regions such as Europe, Middle East, and Southeast Asia. The field has contributed a lot.
In the future, the company will focus more on the improvement of product performance and quality, and continue to build the top brand of electronic control of channel gates.
Why Choose Us
1. Our price is reasonable; 2. We can accept small orders; 3. Sample order delivery time is in 5 days, mass quantity order lead time is 7-10 days; 4. We can accept payment via paypal, T/T and L/C; 5. Our products quality assurance is 1 year, and we can provide you professional technical support; 6. We accept products customize.
