Name: 260rpm185kW Products High Torque Drip-proof Unique Low Speed Permanent Magnet Motor Synchronous Motor
Brand: 260rpm185kW Products High Torque Drip-proof Unique Low Speed Permanent Magnet Motor Synchronous Motor
SKU: YGDLB-185
Price: 29 USD
Availability: InStock
Rating: 4.9 (137 reviews)

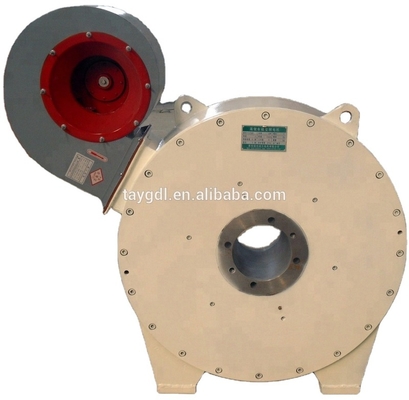

260rpm185kW Products High Torque Drip-proof Unique Low Speed Permanent Magnet Motor Synchronous Motor

1.0 Sets

MOQ

$29,295.00(>=1 Sets)

가격

1.What are your company’s main products?
Our main products are permanent magnet synchronous generators(alternators), permanent magnet synchronous motors(PMSM),controllers, inverters, load box and other corollary equipment and accessories.
2.What is the delivery time?
Usually the delivery time is 10-20 days.
3.Could you do customized products or OEM?
Yes, we have design ability and we are factory. We could make the generator and motor with different rpm, kW, voltage, frequency as you need. We could also do OEM or ODM if you need.
4.How does the your permanent magnet generator work?
Our permanent magnet generator are usually used for wind generation, hydro generation or other new energy generation. The permanent magnet generator itself does not create energy. It just turns mechanical energy to electrical energy. The generator always need a prime mover such as wind turbine, hydro turbine, diesel engine or other running machine to drive the generator, then the generator consume the mechanical energy from the prime mover and output electricity.
We could make low speed and high speed generators, the prime mover could directly drive our generator without gearbox or pulley, which makes the system more efficient and reliable.
5.How does the your permanent magnet motor work?
The permanent magnet motor need a Variable Frequency Drive (some people also call it inverter) to start the motor and adjust the motor speed. We could make low speed motors, could directly drive your low speed machine without gearbox or pulley, increase the system efficiency a lot, and save maintenance cost.

Main specifications
Rated power (kW)	185kW
Rated speed (rpm)	260rpm
Rated torque (Nm):	6975Nm
Rated voltage (V):	380VAC
Rated current (A):	304A
Phase	3-phase
Number of poles	36
Rated frequency(Hz)	78Hz
Insulation Class:	H
Protection Class	IP54
Efficiency(%)	92%
Power factor	1
Cooling	Natural air cooling
Mechanical specifications
Installation	Horizontal
Frame size	560
Weight (Kg)	1355kg
Materials
Shaft material	Steel
Bearings	Steel
Housing material	Casting Iron
Winding material	Copper
Winding temperature level	180℃
Magnet	NdFeB
Magnet temperature level	150℃
Core	High quality cold rolled silicon steel sheet
